Product Details:
|
| Material: | Aluminum Alloy | Model: | NGM6 |
|---|---|---|---|
| Brand: | Atlas | Nitrogen Purity: | 95-99.9% |
| Air Factor: | 2.6~3.5 | Type: | NITROGEN PSA |
| High Light: | 96% PSA Nitrogen Generator,97% PSA Nitrogen Generator,535kg Nitrogen PSA Generator |
||
Desired purity
• NGP/NGP+: nitrogen concentrations from 95% to 99.999%.
• OGP: oxygen concentrations from 90% to 95%.
Exceptional reliability
• Robust design.
• Continuous availability (24 hours a day, 7 days a week).
• Potential risk of production breakdown due to gas running out is eliminated.
Cost savings
• Low operating expenses.
• No additional costs such as order processing,refills and delivery charges.
• Limited maintenance costs.

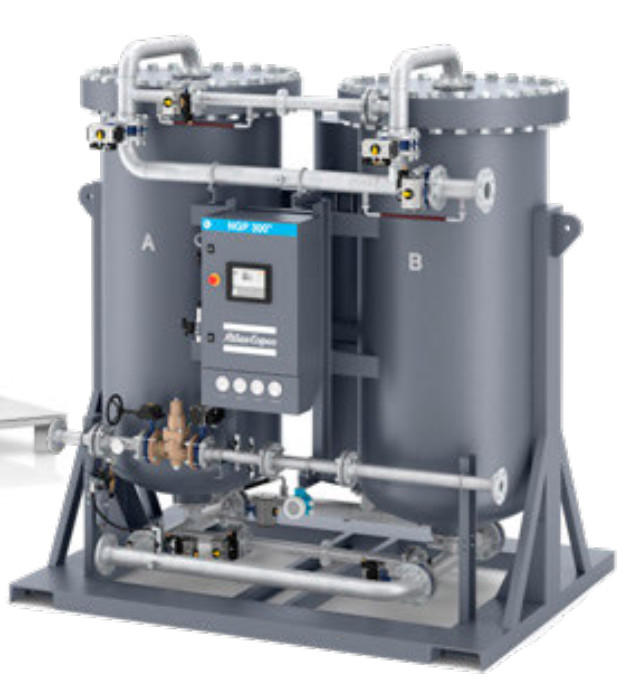

All-in-one high pressure nitrogen skid
The latest addition to Atlas ’s specially developed equipment is the all-in-one high pressure nitrogen
skid, a true alternative for liquid nitrogen or bottles. Combining a small footprint, easy installation, high reliability and supreme energy efficiency, this unique nitrogen skid truly stands out.
The all-in-one solution
All nitrogen skid components are built to Atlas quality and efficiency standards. They are tested for optimal performance and reliability.
Specifications
| Type | Nitrogen Purity | Dimension | Weight | |||||
| 95% | 96% | 97% | mm | in | kg | ibs | ||
| NGM 6 | FND Nm³/h | 168.1 | 138.6 | 109.1 | 820 x 772 x 2090 | 32.3 x 30.4 x 82.3 | 535 | 1179 |
| FND scfm | 98.1 | 80.9 | 63.6 | |||||
| Air factor | 2.6 | 3 | 3.5 | |||||
FND: Free Nitrogen Delivery Reference conditions
Compressed air effective inlet pressure: 8 bar(g)/116 psi(g).
Nitrogen outlet pressure: 6.5 bar(g)/94 psi(g).
Ambient air temperature: 20°C/68°F.
Pressure dewpoint inlet air: 3°C/37°F.
Pressure dewpoint nitrogen: -50°C/-58°F.
Minimum refrigerant dryer required to precondition inlet air.
Typical nitrogen quality 1.2.1 according to ISO 8573-1:2010.
Operating limits
Minimum ambient temperature: 5°C/41°F.
Maximum ambient temperature: 50°C/122°F.
Maximum compressed inlet air pressure 13 bar(g)/189 psi(g).
NGMs performance
is based on 20°C/7 bar at membrane (1000Mbar) + /-5%.
